- Step Width：600/800/1000mm
- Rated Speed：0.5m/s
- Rise：3000~6000mm
- Angle of Inclination：30°/35°
-
tel:
+86 18805714170 -
email:
liu.guangxi@xizielevator.com
XEC-6000 Integrated Drive Escalator
XEC-6000 Integrated Drive Escalator
description1
Zipper closure
1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in
place during workout
Information
Product Positioning
XEC-6000 series integrated drive escalator is the latest safety escalator product launched by XIZI Elevator Technology Co., Ltd. The ladder adopts the most advanced technology of XIZIl Elevator, and is manufactured by the top creative technical team and high-level processing and manufacturing technology, thus ensuring the high performance and high quality of the product. It is suitable for modern industries, hospitals, star-rated hotels, central business districts (CBD), financial services, large shopping malls and other occasions.
XEC-6000 series integrated drive escalator is the latest safety escalator product launched by XIZI Elevator Technology Co., Ltd. The ladder adopts the most advanced technology of XIZIl Elevator, and is manufactured by the top creative technical team and high-level processing and manufacturing technology, thus ensuring the high performance and high quality of the product. It is suitable for modern industries, hospitals, star-rated hotels, central business districts (CBD), financial services, large shopping malls and other occasions.
Technical Specifications
Product Features

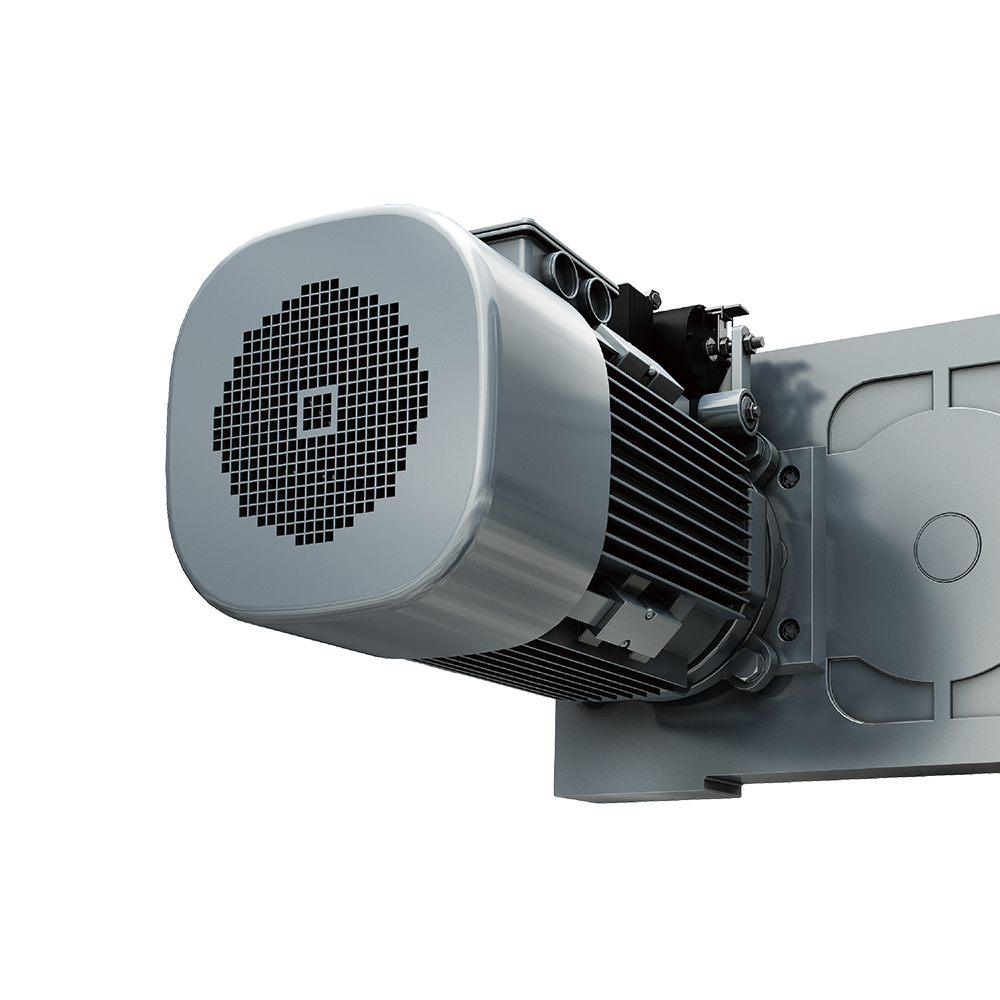

Integrated drive technology
This series of escalators adopts an integrated safety drive machine produced by domestic advanced technology, and this type of drive has excellent performance.
More Safer
The integrated drive cancels the traditional chain drive, eliminates the risk of the main drive chain breaking, and the drive is safer.
Easy to Maintain
The use of closed lubrication system reduces oil spillage and makes maintenance easier.
More Comfortable
The frequency conversion drive mode is adopted to effectively reduce the running vibration and make the experience more comfortable.
This series of escalators adopts an integrated safety drive machine produced by domestic advanced technology, and this type of drive has excellent performance.
More Safer
The integrated drive cancels the traditional chain drive, eliminates the risk of the main drive chain breaking, and the drive is safer.
Easy to Maintain
The use of closed lubrication system reduces oil spillage and makes maintenance easier.
More Comfortable
The frequency conversion drive mode is adopted to effectively reduce the running vibration and make the experience more comfortable.

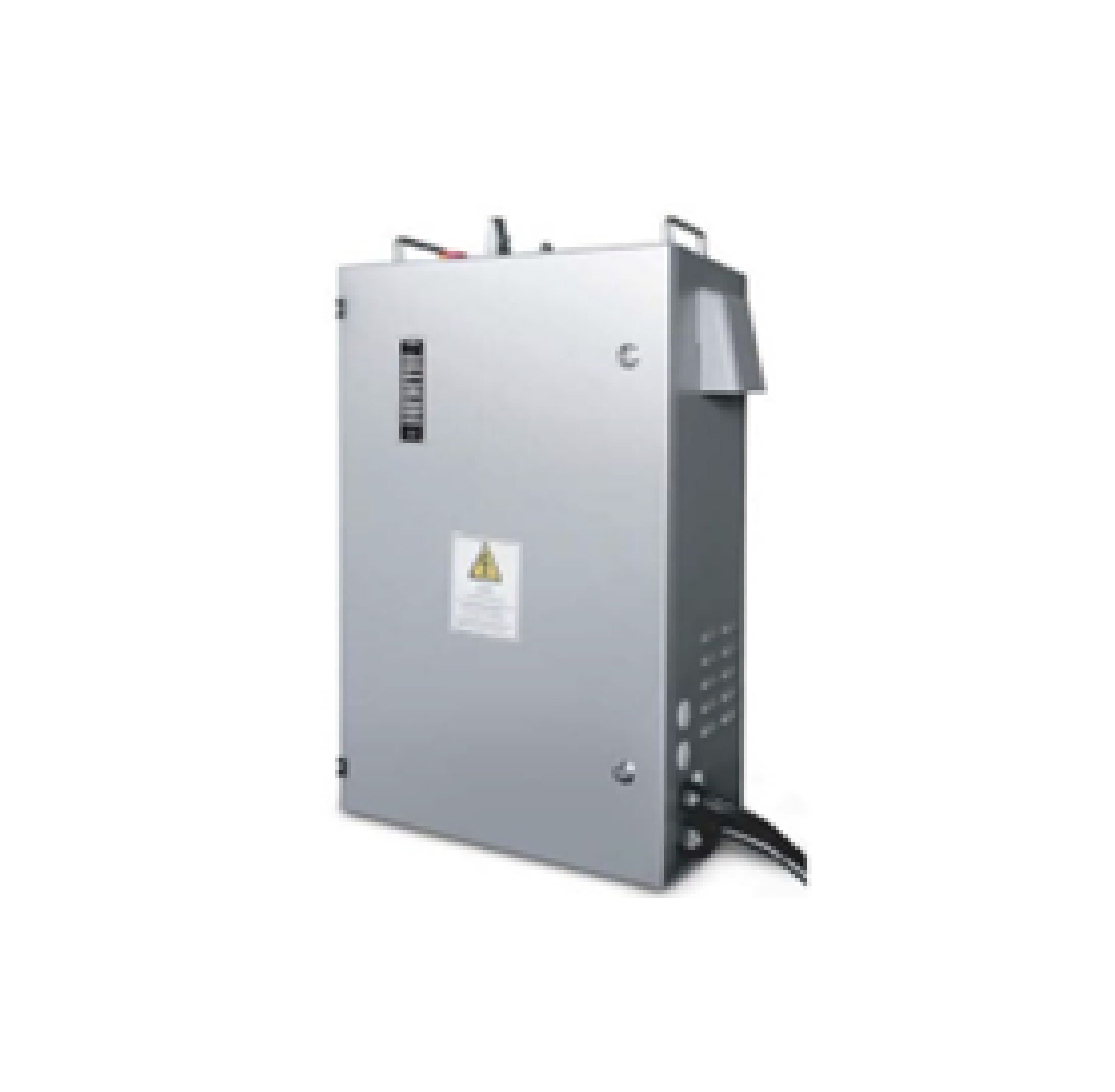

Control System
Using microcomputer control system and fault self-diagnosis display device, it has perfect functions.
Real time monitoring
The safety switches controlled by the microcomputer system are all over the key parts of the escalator. Keep real-time monitoring of the running status of the whole machine.
Broken Record
When a certain part of the escalator has a fault or an abnormal phenomenon that may lead to an accident, the microcomputer will automatically cut off the power supply and brake, and then display the relevant data of the faulty part on the panel digital tube, which enables maintenance personnel to immediately find the fault, position, which facilitates maintenance and reduces downtime for any reason.
Using microcomputer control system and fault self-diagnosis display device, it has perfect functions.
Real time monitoring
The safety switches controlled by the microcomputer system are all over the key parts of the escalator. Keep real-time monitoring of the running status of the whole machine.
Broken Record
When a certain part of the escalator has a fault or an abnormal phenomenon that may lead to an accident, the microcomputer will automatically cut off the power supply and brake, and then display the relevant data of the faulty part on the panel digital tube, which enables maintenance personnel to immediately find the fault, position, which facilitates maintenance and reduces downtime for any reason.
Track System
More stable
Adopt integral upper and lower side plate assembly, high precision and stable operation.
More Safer
The main guide rail adopts the anti-deviation design on both sides, which can effectively prevent the deviation of the stairs and ensure the stable operation of the stairs.
More stable
Adopt integral upper and lower side plate assembly, high precision and stable operation.
More Safer
The main guide rail adopts the anti-deviation design on both sides, which can effectively prevent the deviation of the stairs and ensure the stable operation of the stairs.

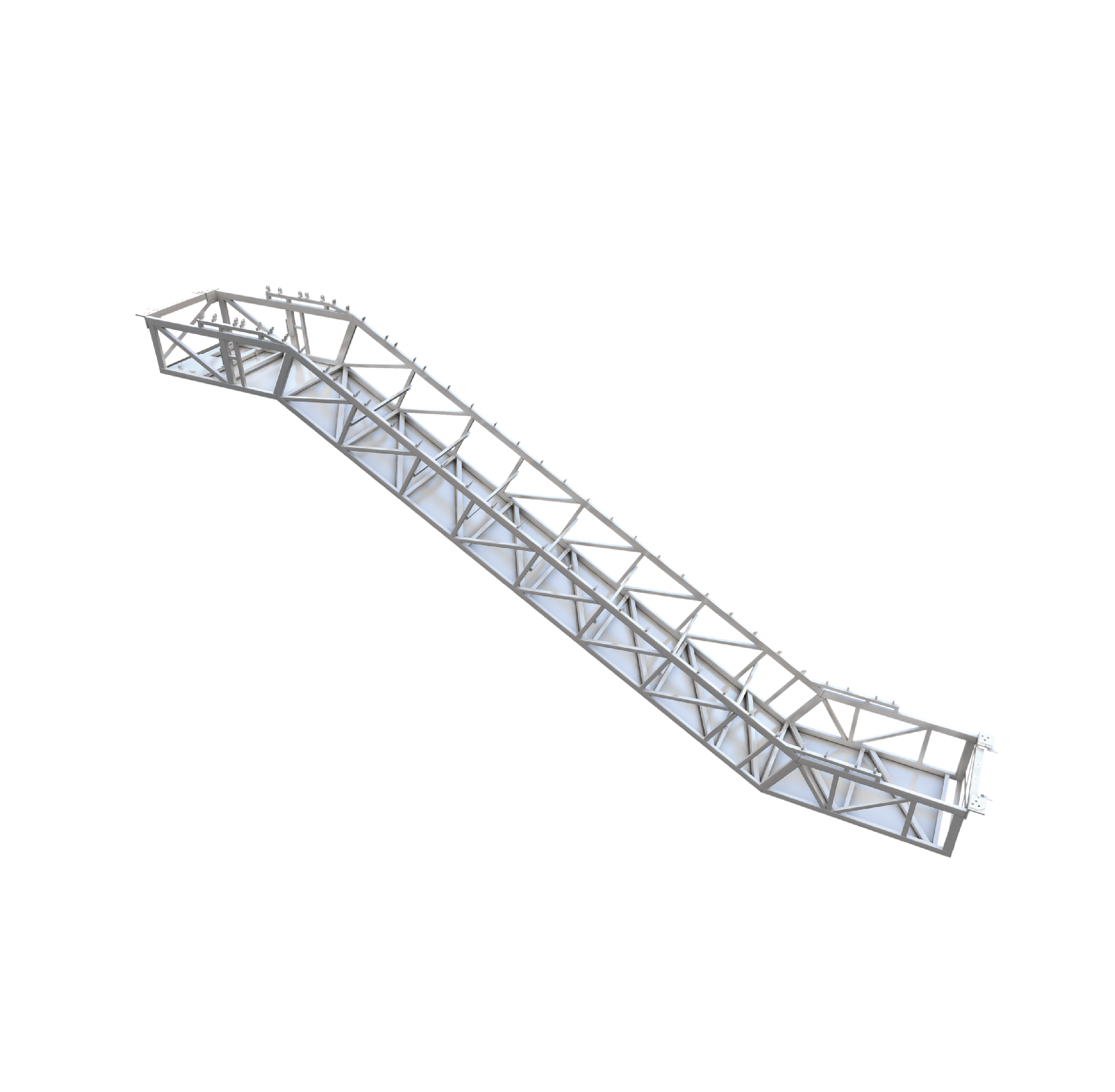

Truss
The self-weight of the escalator and all passenger loads are supported by the truss, so the structure and performance of the truss directly affect the operation of the entire escalator and the comfort of passengers. This type of escalator adopts a new type of square tube truss that is in line with the international advanced level.
Longer Life
The square tube truss has good rigidity, which ensures the stable operation of the escalator under heavy load for a long time and prolongs the service life of the escalator.
Optional Deflection
Standard deflection 1/750, optional deflection 1/1000 and 1/1500
The self-weight of the escalator and all passenger loads are supported by the truss, so the structure and performance of the truss directly affect the operation of the entire escalator and the comfort of passengers. This type of escalator adopts a new type of square tube truss that is in line with the international advanced level.
Longer Life
The square tube truss has good rigidity, which ensures the stable operation of the escalator under heavy load for a long time and prolongs the service life of the escalator.
Optional Deflection
Standard deflection 1/750, optional deflection 1/1000 and 1/1500
Escalator Solutions
|
Product Name |
Application |
Maximum Rise |
Speed |
Angle of Inclination |
Operating Environment |
|
XEC - Integrated Drive Escalator |
Commercial, retail sectors,hotel, office building |
6m |
0.5m/s |
30°/35° |
Indoor, semi-outdoor,outdoor |
|
UN-ES008 Automatic Escalator |
Commercial, retail sectors, hotel, office building |
8m |
0.5m/s |
30°/35° |
Indoor, semi-outdoor, outdoor |
|
XEP - Public Escalator |
Public Transport |
40m |
0.5m/s /0.65m/s |
27.3°/30° |
Indoor, semi-outdoor, outdoor |
|
UN-EY008 Travelator |
Commercial, retail sectors |
6m |
0.5m/s |
10°/11°/12° |
Indoor |
